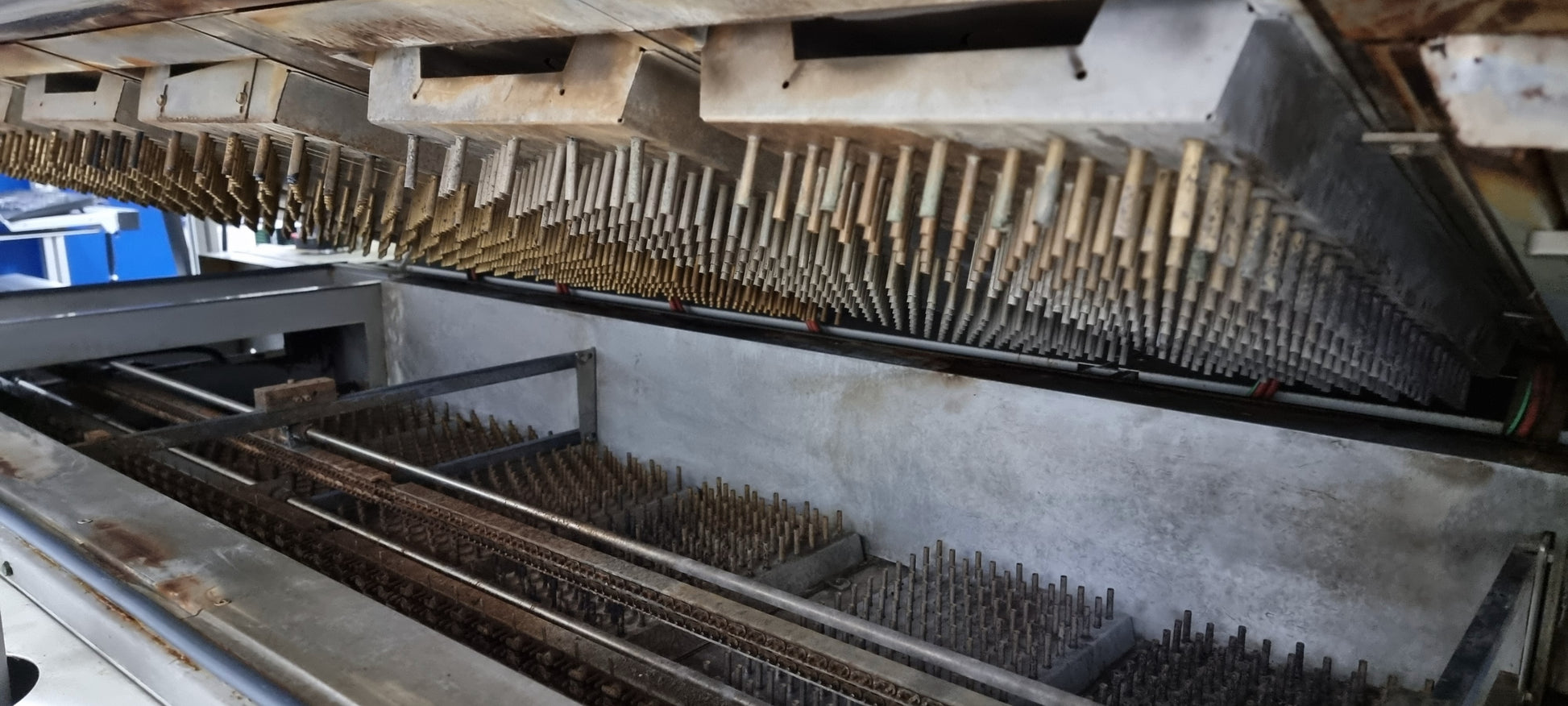

Process Length: 2,450 mm with 12 zones (6 top, 6 bottom) • Preheating: 4 zones at the bottom • Heating Section: 1,650 mm • Active Cooling Section: 800 mm (2-stage from above) • Chain Pin Transport System: 5 mm pin length with center support • Transport Speed: 0.2 - 2.0 m/min (Realistic for BF products: 0.5 - 0.6 m/min) • Working Width: 50 - 500 mm • Electronic Control: For width adjustment and center support • Clearance Height: +35 mm / 25 mm • Inlet & Outlet Length: 700 mm each • Condensate Management / Process Gas Cleaning in cooling zone • Automatic Chain Lubrication • ERSAsoft and EPOS Basic Module • Inline Compatible • SMEMA Compliant • Transport Height: 940 - 965 mm
